Anzahl | Stückpreis | Grundpreis |
---|---|---|
Bis 10 |
107,87 €*
|
0,25 €* / 1 Watt |
Bis 15 |
106,47 €*
|
0,24 €* / 1 Watt |
Bis 20 |
105,07 €*
|
0,24 €* / 1 Watt |
Bis 25 |
103,67 €*
|
0,24 €* / 1 Watt |
Bis 30 |
102,27 €*
|
0,24 €* / 1 Watt |
Ab 31 |
100,87 €*
|
0,23 €* / 1 Watt |
der Artikel ist voraussichtlich wieder lieferbar ab 6. Mai 2024
Produktnummer:
01-000924

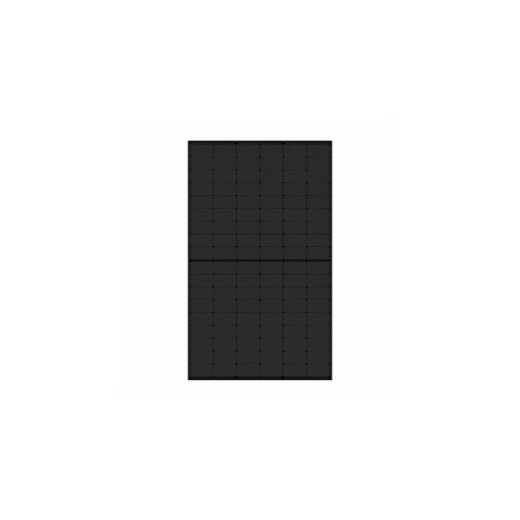

Produktinformationen "Jinko Solarmodul Tiger Neo JKM435N-54HL4R-B - 435Wp Full Black"
- Neue Hot 2.0 Technologie
- Super-Multiple-Busbar-Technologie (SMBB) für mehr Leistung
- Hohe mechanische Belastbarkeit bis 5.400 Pa Schneelast
- Modul-Stecker: MC4
- STC Leistung: 435 Wp
- Rahmenfarbe: schwarz eloxiert
- Zelltechnologie: mono
- Zellenzahl: 108 Stück
- Maße in mm: L: 1762 mm B: 1134 mm H: 30 mm
- Gewicht: 22 kg
- Kabellänge plus: 1200 mm
- Kabellänge minus: 1200 mm
Abmessungen [mm]: | 1762 x 1134 x 30 mm |
---|---|
Gewicht [kg]: | 22 kg |
Kurzschlussstrom Isc [A]: | 13,72 A |
Leerlaufspannung Uoc [V]: | 39,36 V |
Maximale Systemspannung [V]: | 1000 V |
Nennleistung Pmax [Wp]: | 435 Wp |
Nennspannung Umpp [V]: | 30,5 V |
Nennstrom Impp [A]: | 10,72 A |
Produktart: | Solarmodul, PV Modul |
Rahmen: | Alu schwarz |
Stecker Typ: | MC4 |
Temperaturkoeffizient Isc [%/K]: | 0,045 %/K |
Temperaturkoeffizient Pmpp [%/K]: | -0,29 %/K |
Temperaturkoeffizient Uoc [%/K]: | -0,25 %/K |
WEEE-Reg.-Nr. DE: | 26287070 |
Zellenanzahl: | 108 |
Zelltyp: | monokristallin |
